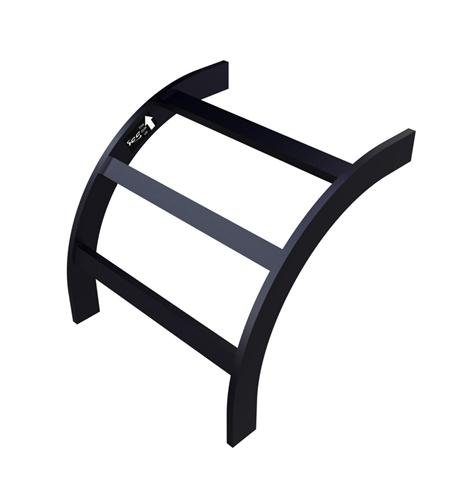

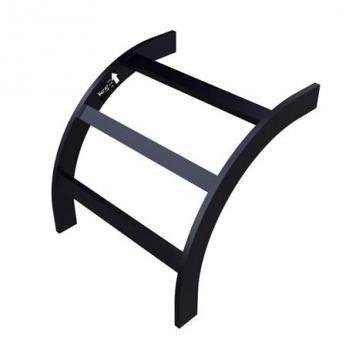

LADDER RACK RUNWAY, 90deg OUTSIDE CORNER

90 Degree Outside Corner for Ladder Rack Runway – Cable Pathway Fitting

The Ladder Rack Runway, 90deg Outside Corner is a pre-fabricated fitting designed to create smooth, professional 90-degree turns in overhead cable tray systems. This outside corner section allows ladder rack runways to change direction while maintaining proper cable bend radius and supporting heavy cable bundles. It is an essential cable management accessory for data centers, network rooms, telecommunications closets, and industrial facilities where overhead cabling must navigate around obstacles or follow building perimeters. This ladder rack accessory ensures a clean, organized, and reliable overhead pathway.

Heavy-Duty Construction and Design

The outside corner is fabricated from high-strength steel with a durable powder-coat finish (typically black or silver) to resist rust, corrosion, and wear. The ladder-style design features evenly spaced cross rungs that match standard runway sections, ensuring consistent cable support and airflow. The 90-degree angle is precisely formed to provide a smooth turning radius that prevents excessive bending of copper or fiber optic cables. The corner includes pre-drilled flanges on both legs for easy bolt-on connection to adjacent runway sections. This overhead cable tray accessory is built to handle the same load capacity as straight runway sections.

Easy Integration with Existing Runway

Installing the outside corner is straightforward: align the corner with the end of a straight runway section, insert bolts through the pre-drilled holes on the connecting flanges, and secure with nuts (hardware may be included or sold separately). The corner can be mounted using the same support brackets (wall supports, trapeze hangers, or threaded rod) as straight sections. The open rung design allows cables to transition smoothly without sharp edges or pinch points. For long cable runs requiring multiple turns, combine several inside and outside corners as needed. This rack accessory simplifies complex pathway layouts.

Why Choose a Dedicated Outside Corner

Attempting to create a 90-degree turn by cutting and modifying straight runway sections is time-consuming, creates rough edges that can damage cable jackets, and compromises structural integrity. A dedicated outside corner fitting ensures proper cable bend radius, maintains load capacity, and provides a professional appearance. The ladder-style design preserves airflow and makes it easy to add or remove cables after installation. This data center accessory is a standard component in any structured cabling project.
