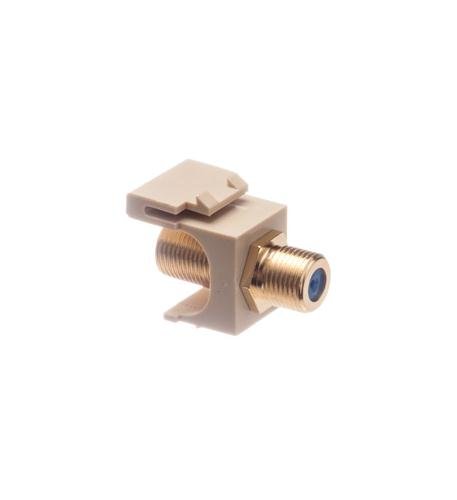

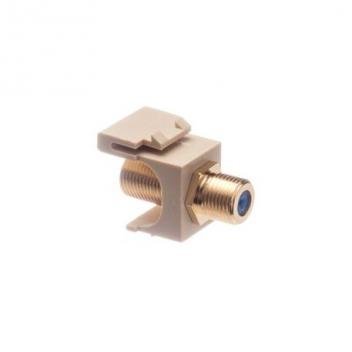

Module, F-Type -Gold Plated, 3GHZ, Ivory

F-Type Gold Plated Keystone Module – 3GHz, Ivory

The Module, F-Type - Gold Plated, 3GHZ, Ivory is a high-performance coaxial keystone insert designed for cable television, satellite, antenna, and broadband internet applications. This module features gold plated F-Type connectors on both the front and rear, ensuring superior signal transmission with minimal loss and corrosion resistance. The 3GHz bandwidth rating supports all current and foreseeable residential and commercial video services, including CATV, DirecTV, Dish Network, OTA antennas, and cable modems. The ivory color matches traditional wall plates and other keystone components, making this module an essential cable management accessory for professional video and broadband installations.

Gold Plated Connectors and 3GHz Performance

Gold plating on the connector threads and center conductor provides several important benefits for F-Type connections. Gold is highly resistant to corrosion, ensuring that connections remain clean and conductive even in humid or coastal environments. It also provides superior signal transfer compared to standard nickel plated connectors, with lower insertion loss and better return loss characteristics. The 3GHz bandwidth rating far exceeds the requirements of standard definition TV (550MHz), high definition TV (1GHz), and even 4K video distribution (up to 2.5GHz). This module is future-proofed for emerging video standards and supports DOCSIS 3.1 cable modems that utilize frequencies up to 1.8GHz. For professional installations involving headsets, phones, and other office accessories, reliable coax infrastructure ensures uninterrupted video conferencing and streaming services.

Keystone Compatibility and Ivory Color

This module is manufactured to standard keystone specifications, ensuring compatibility with virtually any keystone-compatible wall plate, patch panel, surface mount box, or multimedia outlet. The rectangular shape snaps securely into place from the front or rear of the mounting device. The ivory color is a traditional off-white that matches older wall plates and electrical devices, making it ideal for retrofit projects in buildings constructed before white became the standard. It also coordinates well with almond, beige, and light cream color schemes. Whether you are upgrading an existing installation or building new, this ivory module blends seamlessly with its surroundings.

Common Applications and Usage

F-Type keystone modules are used in a wide variety of residential and commercial video and broadband applications. They terminate coaxial cables at wall outlets for televisions, providing a clean, professional appearance instead of cables emerging from holes in drywall. They connect cable modems and broadband routers to the provider's network, supporting internet services for phones, computers, and wireless headset base stations. They distribute satellite or antenna signals to multiple rooms via home run or daisy chain wiring. They provide connection points for security cameras that use coaxial video transmission. In conference rooms, F-Type modules support video conferencing systems that require external video sources. The gold plated connectors maintain signal quality even in demanding environments.

Easy Installation and Termination

Installing the F-Type module requires standard coaxial termination tools and connectors. First, prepare the coaxial cable (typically RG6 or RG59) by stripping back the outer jacket, folding the shielding, and exposing the center conductor. Attach a standard F-Type compression or crimp connector to the prepared cable end. Then, snap the keystone module into your wall plate or surface mount box. Finally, screw the terminated cable onto the rear of the module. The module passes the signal through to the front port, to which you connect your television, modem, or other device. No soldering or special tools are needed beyond a standard coax stripper and compression tool. This straightforward process makes this network accessory accessible to both professionals and experienced DIYers.

Why Choose Gold Plated 3GHz Modules

Standard F-Type modules often use nickel plated connectors with 1GHz or 2GHz bandwidth ratings. For most cable TV and internet applications, a 1GHz module will work adequately. However, there are compelling reasons to choose gold plated 3GHz modules. Gold plating provides superior corrosion resistance, which is especially valuable in coastal areas, basements, or unconditioned spaces. The higher bandwidth future-proofs your installation for new services, 4K and 8K video, and higher speed cable internet. Gold plated modules typically offer better return loss and shielding effectiveness, reducing pixelation and dropouts on digital signals. For professional installations in law firms, medical offices, or corporate headquarters where video quality matters, investing in premium components is a wise choice that supports the headsets, phones, and collaboration tools that rely on reliable network infrastructure.

Best Practices for Installation

Follow these guidelines for optimal performance from your F-Type module. Use high quality RG6 coaxial cable with solid copper center conductor and 95% or better shielding. Terminate cables with compression style F-Type connectors rather than crimp or twist on types, which are less reliable. Do not over-tighten connections; hand tight plus a quarter turn with a wrench is sufficient. Leave a service loop of cable behind the wall plate to allow for future re-termination. Use cable management bars or ties to support heavy coaxial cables and prevent stress on the module. Test each run with a cable certifier or at minimum verify continuity and check for shorts. Label each module with the source (e.g., “cable box,” “antenna,” “satellite”) for future troubleshooting.

Complementary Products for a Complete Installation

To complete your coaxial installation, pair this ivory F-Type module with ivory wall plates (1-gang, 2-gang, or multi-port), RG6 coaxial cable, compression F-Type connectors, a coaxial stripper, a compression tool, and cable management accessories. For multi-room installations, consider coaxial splitters and distribution amplifiers. For combined voice and video outlets, explore our keystone modules for phone and Ethernet alongside this F-Type module. Explore our full range of network accessories, cable management accessories, and coaxial solutions on Find Headsets to support all your headsets, phones, and office technology infrastructure needs.
