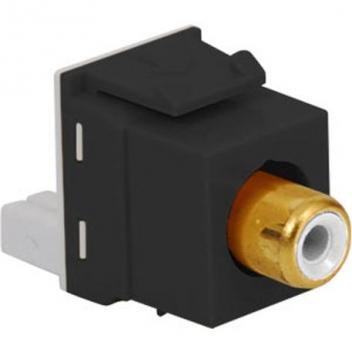

MODULE, RCA IDC, WHITE INSERT, BLACK

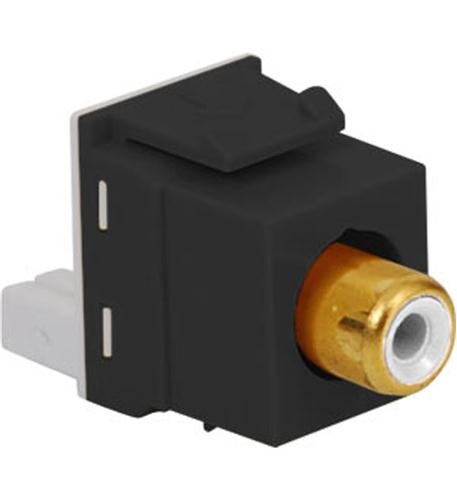

RCA IDC Keystone Module – White Insert on Black Housing

The Module, RCA IDC, White Insert, Black is a high-quality keystone insert designed for terminating RCA-type audio and composite video connections. This module features an RCA female connector on the front and insulation displacement connector (IDC) terminals on the rear, allowing you to directly terminate bare wire without soldering or crimping on RCA plugs. The design combines a white insert with a black housing, creating a striking contrast that is both functional and visually appealing. This module is an essential cable management accessory for home theaters, conference rooms, classrooms, and commercial audio video installations where black wall plates or dark decor are used, complementing headsets, phones, and other office accessories in professional environments.

RCA Connector and IDC Termination

The RCA connector, also known as a phono connector or cinch connector, is the industry standard for consumer and commercial analog audio and composite video signals. This module provides a single RCA female port on the front with a white insert that clearly identifies the connection point. The rear features IDC (insulation displacement) terminals that accept bare speaker wire or shielded audio cable. IDC termination is a significant advantage over traditional RCA plugs: you simply insert the stripped wire into the terminal slot and press down with a punch down tool or small screwdriver. No soldering, no crimping, and no special RCA plugs are required. The white insert against the black housing makes the port easy to locate in low light conditions, a thoughtful design feature for behind equipment racks or in dimly lit rooms.

Keystone Compatibility and Contrasting Design

This module is manufactured to standard keystone specifications, ensuring compatibility with virtually any keystone-compatible wall plate, patch panel, surface mount box, or multimedia outlet. The rectangular shape snaps securely into place from the front or rear of the mounting device. The white insert on black housing provides a high contrast appearance that is both modern and practical. The white insert clearly marks the location of the RCA port, making it easy for users to find without fumbling. The black housing blends with dark wall plates, electrical devices, and decor commonly found in home theaters, media rooms, and commercial AV closets. This design choice is appreciated by custom installers who need components that look as good as they perform.

Common Applications and Usage

RCA keystone modules with IDC termination are used in a wide variety of audio and video installations. They terminate speaker wires for left and right audio channels in home theaters and distributed audio systems, with the white insert typically used for left channel or coaxial digital audio. They provide composite video connections for older cameras, DVD players, and gaming systems. They extend RCA signals through walls and floors, eliminating visible cables and creating a clean installation. In conference rooms, they connect presentation sources to ceiling mounted projectors or display systems. In classrooms, they provide connection points for laptops and other AV equipment. The contrasting white insert is especially useful in black wall plates where standard black-on-black modules can be difficult to see and use.

Easy IDC Termination Process

Terminating this module requires only basic tools and takes about a minute per connection. Begin by stripping approximately one inch of the outer jacket from your audio or video cable, exposing the inner conductor and shield. For shielded cable, separate the center conductor and the drain wire or shield. Insert the center conductor into the center terminal slot (typically marked with a + or a colored dot). Insert the shield or return wire into the outer terminal slot (typically marked with a -). Use a 110 punch down tool or a small flathead screwdriver to press the wires fully into the IDC slots, which cuts through the insulation and makes contact with the metal terminal. The IDC connection is vibration resistant and provides excellent signal transfer. After termination, snap the module into your black wall plate and connect your RCA cable to the white insert front port.

Why Choose Contrasting White Insert on Black

Many keystone modules are monotone, which can make them difficult to locate in low light or against dark backgrounds. The white insert on this module solves that problem by creating a clear visual target. Users can easily spot the port even in dim home theaters or behind equipment racks. The black housing blends with black wall plates and dark decor, while the white insert provides the necessary contrast for usability. This design is especially valuable in commercial installations where multiple ports are present and quick identification is important. For professional installers, this contrasting design reduces support calls from users who cannot find the correct port.

Best Practices for Installation

Follow these guidelines for optimal performance from your RCA IDC module. Use high quality shielded audio cable (22-24 AWG) for line level signals or 16-18 AWG speaker wire for powered signals. Consistent strip lengths will make termination easier; use a wire stripper rather than a knife. For stereo installations, use two modules: white insert for left channel, red insert for right channel. For 5.1 surround sound, use six modules with appropriate labeling. Label each module with its channel for future reference. Test each connection with a multimeter before final wall plate installation. Leave a service loop of cable behind the wall plate to allow for future re-termination. Use cable management bars to support heavy cables and prevent stress on the IDC terminals.

Complementary Products for a Complete Installation

To complete your audio video installation, pair this white insert black module with black wall plates (1-gang, 2-gang, or multi-port), shielded audio cable, cable strippers, a 110 punch down tool, and cable management accessories. For stereo installations, consider our RCA IDC module with red insert for right audio and white insert for left audio. For digital audio, explore our S/PDIF or Tos link keystone modules in matching black housing. For video, consider our HDMI, VGA, or BNC modules in black. Explore our full range of network accessories, cable management accessories, and AV solutions on Find Headsets to support all your headsets, phones, and office technology infrastructure needs.
