MODULE, RCA IDC, WHITE INSERT, WHITE

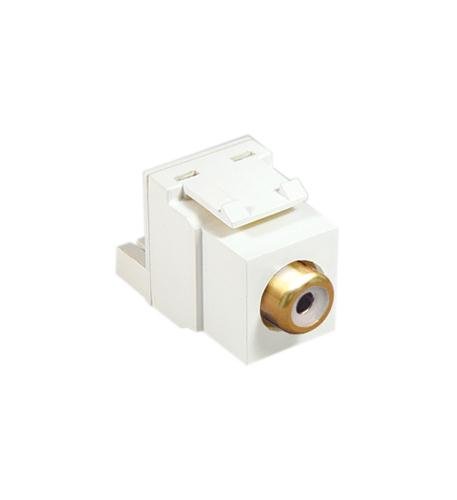

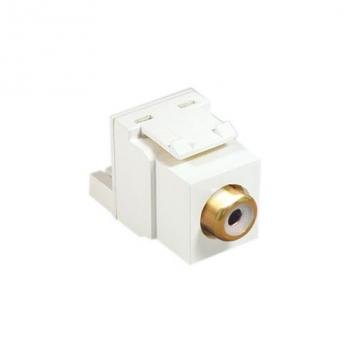

RCA IDC Keystone Module – White Insert on White Housing

The Module, RCA IDC, White Insert, White is a high-quality keystone insert designed for terminating RCA-type audio and composite video connections. This module features an RCA female connector on the front and insulation displacement connector (IDC) terminals on the rear, allowing you to directly terminate bare wire without soldering or crimping on RCA plugs. The all-white design (white insert and white housing) matches modern wall plates, surface mount boxes, and other keystone components, making this module an essential cable management accessory for home theaters, conference rooms, classrooms, and commercial audio video installations that support headsets, phones, and other office accessories.

RCA Connector and IDC Termination

The RCA connector, also known as a phono connector or cinch connector, is the industry standard for consumer and commercial analog audio and composite video signals. This module provides a single RCA female port on the front, typically color coded red for right audio, white for left audio, or yellow for composite video (this module is white, suitable for left audio or custom labeling). The rear features IDC (insulation displacement) terminals that accept bare speaker wire or shielded audio cable. IDC termination is a significant advantage over traditional RCA plugs: you simply insert the stripped wire into the terminal slot and press down with a punch down tool or small screwdriver. No soldering, no crimping, and no special RCA plugs are required. This makes field termination fast, reliable, and professional.

Keystone Compatibility and All-White Design

This module is manufactured to standard keystone specifications, ensuring compatibility with virtually any keystone-compatible wall plate, patch panel, surface mount box, or multimedia outlet. The rectangular shape snaps securely into place from the front or rear of the mounting device. The white insert on white housing provides a clean, uniform appearance that matches modern white wall plates, electrical devices, and decor. Unlike modules with contrasting colors, this all-white design disappears into the wall plate, putting the focus on your connected equipment rather than the infrastructure. This subtlety is appreciated in high-end residential installations, corporate boardrooms, and professional studios.

Common Applications and Usage

RCA keystone modules with IDC termination are used in a wide variety of audio and video installations. They terminate speaker wires for left and right audio channels in home theaters and distributed audio systems. They provide composite video connections for older cameras, DVD players, and gaming systems. They extend RCA signals through walls and floors, eliminating visible cables and creating a clean installation. In conference rooms, they connect presentation sources to ceiling mounted projectors or display systems. In classrooms, they provide connection points for laptops and other AV equipment. The IDC termination is especially valuable for custom installers who need to terminate many cables quickly and consistently without carrying multiple types of RCA plugs.

Easy IDC Termination Process

Terminating this module requires only basic tools and takes about a minute per connection. Begin by stripping approximately one inch of the outer jacket from your audio or video cable, exposing the inner conductor and shield. For shielded cable, separate the center conductor and the drain wire or shield. Insert the center conductor into the center terminal slot (typically marked with a + or a colored dot). Insert the shield or return wire into the outer terminal slot (typically marked with a -). Use a 110 punch down tool or a small flathead screwdriver to press the wires fully into the IDC slots, which cuts through the insulation and makes contact with the metal terminal. The IDC connection is vibration resistant and provides excellent signal transfer. After termination, snap the module into your wall plate and connect your RCA cable to the front.

Why Choose IDC Termination Over Pre-Made Cables

Many installers use pre-made RCA cables with molded plugs, but these have limitations. Pre-made cables require you to drill larger holes to pass the plug through walls, and the cable length is fixed, leading to excess coil or cables that are too short. IDC termination solves both problems: you run bulk wire (typically 18-22 gauge stranded or solid) through small holes, cut exactly to length, and terminate directly at the wall plate. This results in a cleaner installation with no excess cable and no unsightly plugs protruding from walls. IDC connections are also more secure than screw terminal or spring clip connections, maintaining signal integrity over years of use. For professional installers, IDC termination reduces inventory costs and increases installation speed.

Best Practices for Installation

Follow these guidelines for optimal performance from your RCA IDC module. Use high quality shielded audio cable (22-24 AWG) for line level signals or 16-18 AWG speaker wire for powered signals. Consistent strip lengths will make termination easier; use a wire stripper rather than a knife. For stereo installations, use two modules (red for right, white or black for left). For 5.1 surround sound, use six modules labeled appropriately. Label each module with its channel (e.g., “front left,” “center,” “subwoofer”) for future reference. Test each connection with a multimeter before final wall plate installation. Leave a service loop of cable behind the wall plate to allow for future re-termination. Use cable management bars to support heavy cables and prevent stress on the IDC terminals.

Complementary Products for a Complete Installation

To complete your audio video installation, pair this white RCA module with white wall plates (1-gang, 2-gang, or multi-port), shielded audio cable, cable strippers, a 110 punch down tool, and cable management accessories. For stereo installations, consider our RCA IDC module in red for right audio and white for left audio. For digital audio, explore our S/PDIF or Tos  link keystone modules. For video, consider our HDMI, VGA, or BNC modules. Explore our full range of network accessories, cable management accessories, and AV solutions on Find Headsets to support all your headsets, phones, and office technology infrastructure needs.
