Viking Electronics Rad-Amp Amplified Remote Access Device

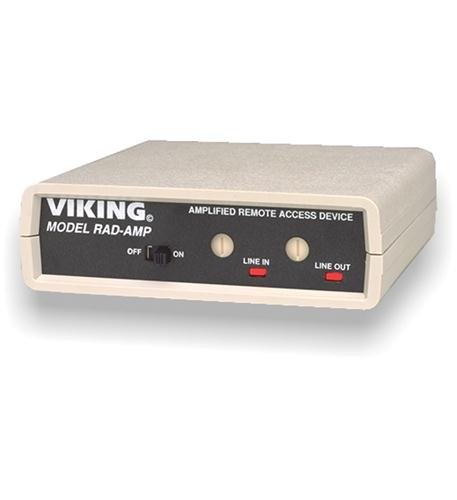

Viking RAD‑AMP – Amplified Remote Access Device for Paging & Monitoring

The Viking RAD‑AMP (Remote Access Device with Amplifier) is a versatile, high‑powered audio and control unit designed for public address, emergency notification, and remote monitoring systems. It provides a 15‑watt amplifier to drive speakers, plus dry contact relays for activating gates, strobes, or call boxes. Ideal for parking ramps, college campuses, industrial sites, and gated communities, the RAD‑AMP lets you page, listen to area sounds, and control equipment from a remote telephone or intercom station. With a simple two‑wire connection to a standard analog phone line or PBX extension, this device turns any phone into a powerful remote control.

How It Works

Connect the RAD‑AMP to an analog phone line (POTS) or a PBX extension. When you call the device from any phone, you hear a dial tone. Enter a numeric security code to gain access. Once connected, you can page live through the attached speaker (up to 15 watts), listen to ambient audio through an external microphone (call‑in monitoring), or activate up to four dry contact relays (e.g., open a gate, turn on a siren, reset a panic button). The RAD‑AMP’s built‑in amplifier ensures clear, loud audio even in noisy environments. The device also includes a night‑ring feature to automatically page when a call is received. For a complete monitoring station, pair this with a high‑quality corded headset at FindHeadsets so your security staff can communicate clearly while managing remote sites.

Compatibility & Design

The Viking RAD‑AMP works with any analog phone line (POTS) or PBX station port that provides loop current. It includes a 15‑watt Class‑D amplifier (8Ω speaker output), four programmable dry contact relays (C‑form, rated 1A @ 30V AC/DC), and an auxiliary audio input for background music. The unit is housed in a weather‑resistant metal enclosure suitable for indoor or sheltered outdoor use. Dimensions: 9 x 6 x 2.5 inches. The RAD‑AMP supports programmable security codes (3‑6 digits), auto‑answer, and remote relay latching or momentary operation. It also has a built‑in microphone for listen‑in and an auxiliary output for recording.

Why Choose This Product

The RAD‑AMP solves the problem of needing separate amplifiers, relay controllers, and phone interfaces for remote sites. All‑in‑one, it simplifies installation and reduces equipment costs. The 15‑watt amplifier is powerful enough to cover small to medium areas (parking lots, building entries). The four relays allow you to control gates, lights, or alarms from any off‑site phone. The listen‑in feature lets you verify alarm conditions or check for loitering. For facility managers, this device is a cost‑effective way to add remote control and paging without complex automation systems.
