4011 D7 Expansion Mod D715, D725, D765

Extend Your Communication Capabilities with 18 Programmable Keys

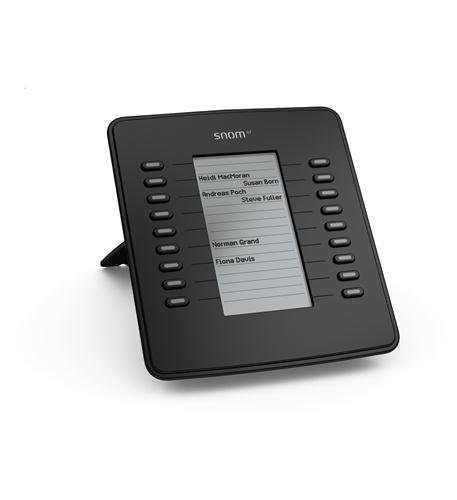

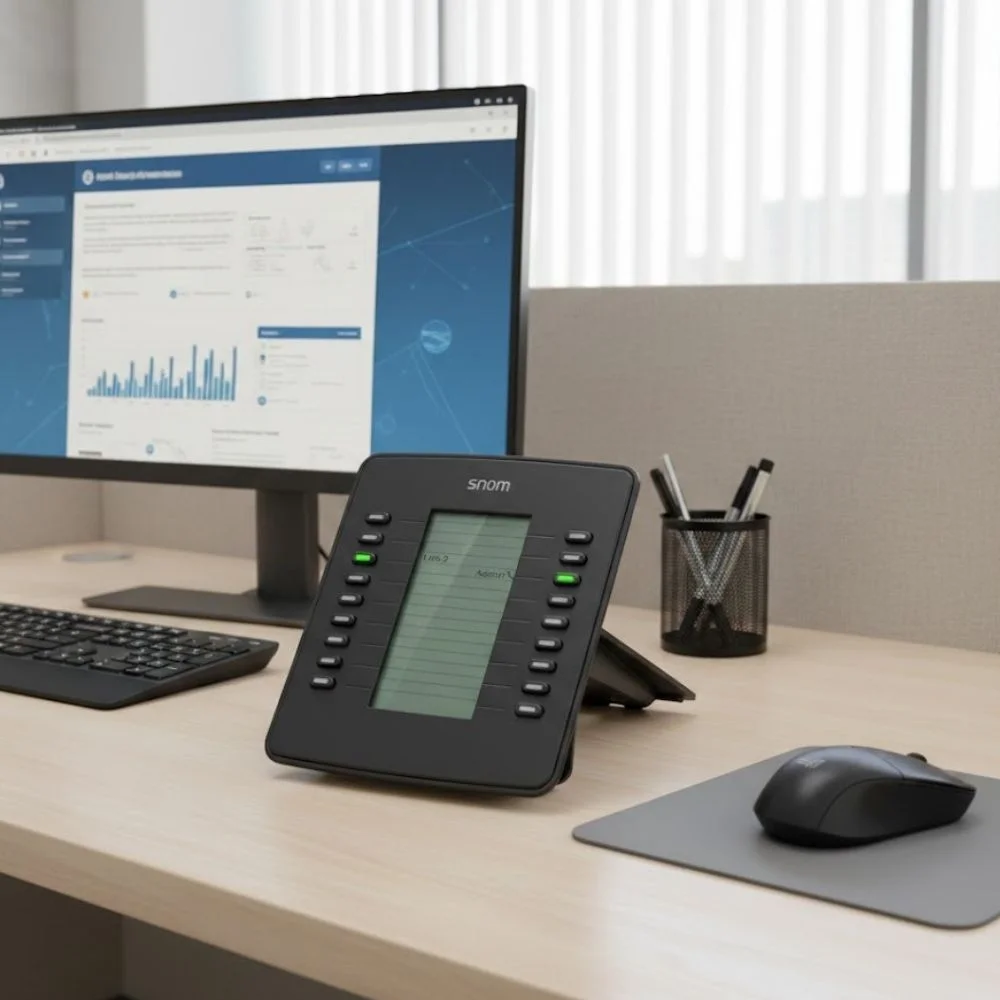

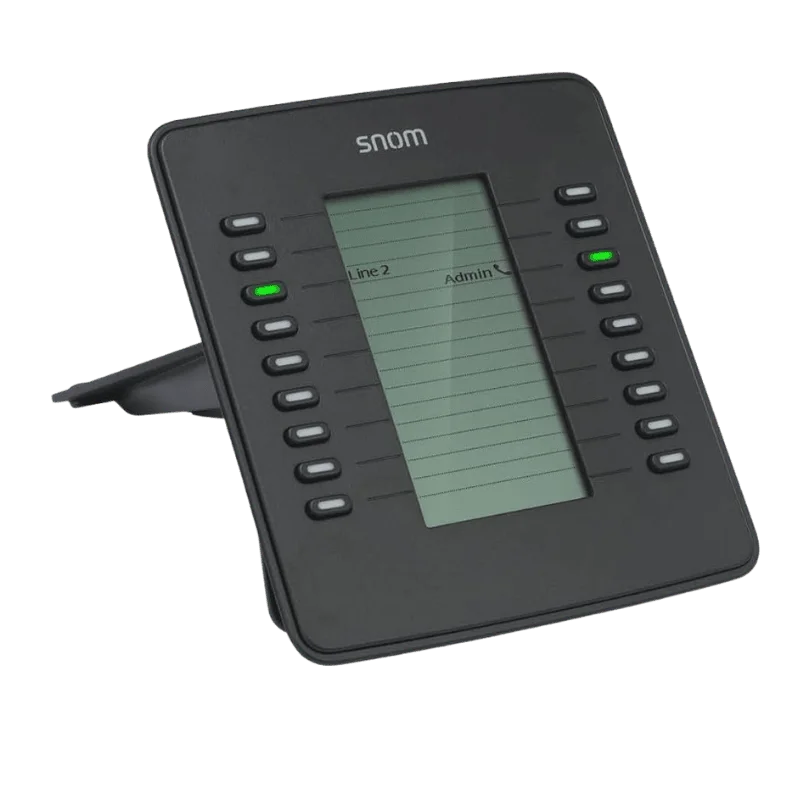

The Snom D7 Expansion Module is a professional-grade accessory engineered to dramatically enhance the functionality of compatible Snom 700 series IP phones, including the D715, D725, and D765 models. As a highly configurable Digital Station Selector, this sleek black module adds 18 freely programmable multicolor LED keys to your desktop phone, transforming it into a powerful communications hub. It is specifically designed for receptionists, executive assistants, managers, and power users who require instant, one-touch access to numerous contacts, busy lamp field monitoring, and advanced call handling features.

Extensive Programmability with Multicolor LED Status Indicators

The defining feature of the D7 expansion module is its 18 highly configurable, self-labeling function keys, each equipped with a multicolor LED indicator. These keys can be programmed with the full range of available Snom phone functions, including direct line appearances, speed dials, busy lamp field monitoring for colleagues, call pickup, and feature activations .

The intuitive color-coded LEDs provide immediate visual feedback on the status of each monitored extension or function—such as idle, ringing, busy, or on hold—allowing for rapid, efficient call handling without navigating through phone menus .

High-Resolution Display and Intuitive Configuration

The D7 features a high-resolution black-and-white backlit display that provides a perfect visual interface for key labeling and status information . The display ensures exceptional readability from any angle, making it easy to identify contacts and functions at a single glance.

Configuration is straightforward and flexible: the module can be fully customized via the host phone's web interface or directly through the phone's menu system, allowing users to tailor the key assignments to their specific workflow requirements .

Daisy-Chain Capability for Up to 54 Additional Keys

For users with even greater call handling demands, the D7 expansion module supports daisy-chaining of up to three units to a single Snom phone . This scalable design provides a total of 54 additional programmable function keys, creating the ultimate professional attendant console for the most demanding communication environments.

The first D7 module connects to the telephone via a USB cable and receives power directly from the host phone . When multiple modules are used, additional external power is required, and the final D7 in the chain provides a USB port for connecting other peripheral devices such as a USB headset .

Ergonomic Design and Seamless Integration

Designed for seamless integration with the Snom 700 series, the D7 features a dual-angle footstand that can be adjusted to either 46° or 28°, ensuring optimal viewing ergonomics for any desk setup . Its sleek black aesthetic perfectly matches the design language of compatible phones, creating a unified professional appearance.

The module is plug-and-play ready, connecting via USB with simple installation . Technical considerations for advanced users include hardware revision-specific behaviors: older D7 modules (pre-R4) have a hardware limitation that may require toggling the enable_ehci setting in phone firmware to choose between daisy-chaining modules or using a USB headset connected to the module . Newer hardware revision R4 modules and the white D7 variant resolve this limitation, supporting both simultaneously .

Target Applications: The Ultimate Productivity Tool for Power Users

The Snom D7 Expansion Module is the definitive accessory for any professional whose role demands efficient, high-volume communication management. It is ideally suited for busy reception areas requiring instant visibility of staff availability and one-touch call transfer. It empowers executive assistants to manage multiple lines and principals' communications effortlessly.

It transforms the desks of team leaders, supervisors, and call center agents into powerful command centers for monitoring team presence and call activity. Compatible with Snom D715, D725, D765, and other 700 series telephones with USB ports, the D7 is an indispensable tool for maximizing productivity and communication control .
