Yealink WH66 DECT Wireless Headset

Yealink WH66 DECT Wireless Headset is a combination of a wireless headset and an all-in-one UC Workstation. Instead of having to control calls from individual devices, the base can control calls, connect communication devices and access additional features from a single desk setup.

The product is an original Yealink, available in both Mono and Dual variants and certified for both Microsoft Teams and UC. It also includes DECT and Bluetooth features, perfect for multi-computer, multi-desktop, mobile office teams.

Key Features

All-in-One UC Workstation for Business Communication

The WH66 is more than just a charging base. It is a UC Workstation, which combines several functions in one product.

The base includes:

• A 4” capacitive touch screen

• A full-duplex speakerphone with acoustic echo cancellation.

• A 2-port USB 3.0 hub

• Bluetooth connectivity

• Wireless headset charging dock

• An integrated busylight

This configuration enables a user to control calls and devices that are connected from a single workstation. It can also help to keep a desk from getting cluttered with a lot of individual accessories.

4-Inch Touch Screen and Built-In Speakerphone

It has a 4-inch 480 × 800 capacitive touch screen display in the base. It can be used to Base consists of capacitive touchscreen to provide easy access to call controls. The screen helps in controlling call functionality without having to touch either your PC or the connected phone.

Call control features of the touchscreen include:

• Call acceptance

• Call termination

• Call rejection

• Call hold

• Call muting

• Volume adjustment

Furthermore, there is also a speakerphone option in the base. When using the speakerphone option, the base controls the voice call while the touchscreen allows you to manipulate the call functions.

Clear Calls With Two Microphones and Acoustic Shield

This headset has two microphones that use Yealink Acoustic Shield Technology. The Acoustic Shield technology minimizes any noise that can be captured by the microphones when you talk. This will make sure that your voice is clear to the other person at the receiving end.

The microphone has a frequency range of 100Hz to 10kHz and a sensitivity of -44 ±3dBV.

Moreover, the headset features a microphone mute, which offers another control over voice input when making a call.

Full-Duplex Speakerphone With AEC

The base unit has a full-duplex hands-free speakerphone with AEC.

If you would like to talk with the people who are physically present, you can change from the Private Headset to the speakerphone of the base unit. This is yet another method that groups can use for brief talks and meetings

This base speaker is equipped with a 40 × 20.8mm speaker, a frequency range of 160Hz – 20kHz, maximum input power of 4W.

Comfortable Mono and Dual Wearing Options

The WH66 is available in both wearable mono and dual headphones.

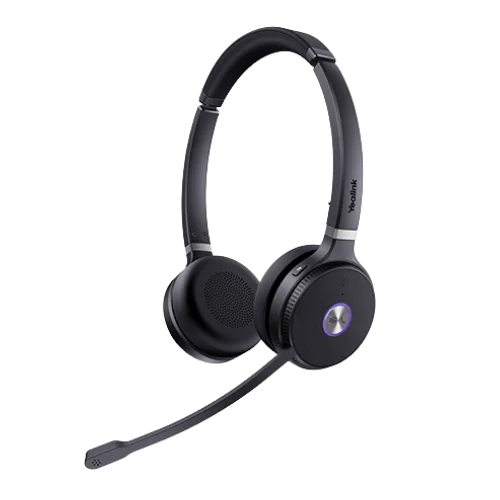

The Dual variant can be used in both ears and provides stereo sound for those who value calls and meetings

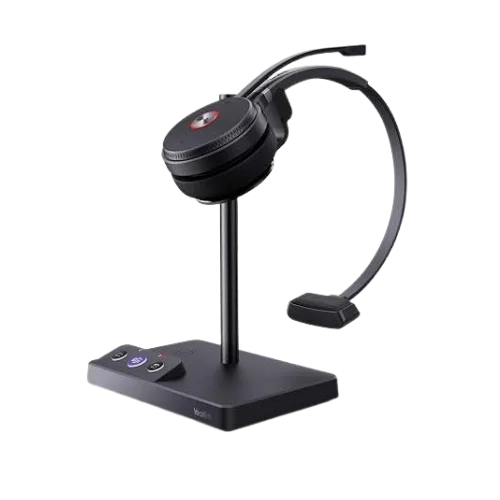

This Mono version features a single ear cup with an open ear that allows users to hear what is going on around them.

Both versions feature a headband design with soft and breathable ear cushions.

The weight of the headset is:

• Mono: 80g

• Dual: 127g

The ear cushions are also easily replaceable, reducing maintenance.

Adjustable Microphone Boom for Flexible Wearing

The microphone boom can be placed at the right place. Also, the microphone boom arm can be raised for muting the microphone and lowered for unmuting it.

The lift-to-mute allows you to mute and unmute your microphone quickly while in a call, rather than looking for a button.

DECT Wireless Range Up to 160m

DECT provides the headset with a greater wireless range than most of the short-range office wireless systems.

The WH66 is capable of achieving a range of up to 160m (525 feet) between the headset and base. The actual range could be less than the claimed range due to physical obstacles such as walls.

While on a call, in case you move out of the coverage range, the headset will give an out-of-range warning. Upon getting back into the coverage range, the call may continue. The headset turns off if it is out of range for about 10 minutes

Secure DECT for Business Communication

The headset utilizes Secure DECT Step C technology. According to Yealink, DECT is protected by the DSAA2 and DSC2 128-bit encryption.

This enables the creation of a secure wireless connection between the headset and base, which is useful in a business environment where communications are crucial.

Connect Up to Three Devices

There are two Bluetooth connections and one USB connection, which will enable up to three compatible devices to remain connected simultaneously.

The connection is possible, for example:

• Computer through the USB port.

• IP phone through Bluetooth

• Mobile phone capable of Bluetooth.

This enables you to control several communication sources with one headset and workstation, rather than having to switch from one headset to another.

It comes with Bluetooth 4.2 and a USB 3.0 port.

2-Port USB 3.0 Hub for Your Desk

The UC Workstation serves in addition as a 2-port USB 3.0 hub.

It provides extra USB ports for peripheral devices to connect to, and minimizes the number of USB hubs needed on your desktop.

This is especially helpful for workstations where several USB devices are already plugged into a computer.

Built-In Busylight for Fewer Interruptions

The headsets have a built-in LED busy light that shows others the status of the headsets.

They can be used to notify your coworkers that you are engaged in a call in order to avoid unnecessary disturbances in common working areas.

The BLT60 external busylight can also be bought as an accessory option for those requiring a bigger visual indication.

Optional Wireless Charging for Mobile Phones

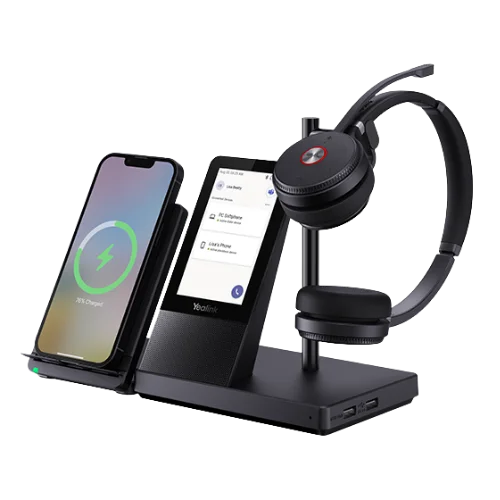

The optional WHC60 Qi wireless charging stand fits in the workstation.

The accessory will enable you to charge a compatible mobile phone via Bluetooth, then connect it to the base. This provides another functionality to the desk setup without the need for an extra phone charger.

The WHC60 is sold separately.

Battery Life for Daily Business Calls

The performance of the batteries is slightly different in mono and dual versions.

• Mono talk time: Up to 13 hours

• Dual playback time: 14 hours max.

• Mono standby time: up to 90 hours

• Dual standby time: Up to 125 hrs

• Time to fill: 2.5 hours

Gives users a sufficient battery life to handle full call-intensive work days. The battery life is dependent on use and environment.

Hearing Protection Features

The headset comes with some hearing protection features to aid in the management of audio exposure during normal use.

Supported protection includes:

• Peak Block Protection (EN50332), Australian G616 Protection, and Daily Noise Exposure Protection.

• Australian G616 Protection

• Daily Noise Exposure Protection

Such features provide an additional level of thought for persons who spend a lot of time using a headset.

High-Density DECT for Open Offices

High density deployment is supported with the WH66 making it ideal for larger office environments where multiple wireless headsets are deployed in the same area.

Yealink suggests that the device can accommodate as many as 200 users simultaneously in a proper open office setup in Europe without any signal disruptions.

It may be useful for larger groups who have to transmit data wirelessly in a unified working space.

Microsoft Teams and UC Configurations

There are two variations of the headset: Microsoft Teams certified and UC.

The UC version helps in the wider implementation of unified communications, and the Teams certified version is for companies using Microsoft Teams for collaborations.

Yealink claims to support 100+ platforms and operating systems, including platforms such as Microsoft Teams, Zoom, 3CX, RingCentral and Unify.

Please ensure that your communication platform/disconnect setup is compatible before ordering.

Yealink USB Connect and Device Management

Yealink USB Connect enables the management of Yealink USB devices such as business headsets, speakerphones, and webcams by IT departments.

Furthermore, the WH66 is capable of working with the Yealink Device Management platform, which might be useful for organizations with large-scale deployment and management of compatible devices.

This functionality may simplify the management of devices for businesses.

Who Is the WH66 Designed For?

It is capable of being utilized in many different professions.

Office Teams

It's useful for employees in shared office spaces, with its long DECT range, its busylight and the high density of support.

Call-Heavy Professionals

The microphone noise reduction, comfortable wearing, lift-to-mute and long talk time are features users will appreciate for those who talk on the phone for a large portion of the day.

Microsoft Teams Users

Certified Configurations for Teams: For businesses that need their communication to be done via Microsoft Teams, certified configurations for teams are available.

Users with Multiple Devices

The two-way Bluetooth and USB connectivity makes it easier for users switching from one computer to another or using other communication devices.

Larger Business Deployments

The DECT high density and controls make it a perfect choice for business environments with multiple wireless headsets.

What's Included in the Box?

The standard delivery contains:

• WH66 base

• WH66 Mono or Dual headset

• Power adapter

2 x 1m USB 3.0 cables

• Quick Start Guide

Optional accessories include:

• BLT60 External Busylight

• WHC60 Wireless Charger

• BT50 Bluetooth Dongle

These accessories are NOT included in the standard contents of the box and must be purchased separately.

Which WH66 Configuration Should You Choose?

This should be based on your work environment.

If you are looking to stay alert and have one ear open, select the Mono version. It also weighs 80g which is light.

Select the Dual option for more complete ear coverage for calls and meetings. It is 127g and can play stereo music.

If you're using Microsoft Teams, select the Microsoft Teams certified version of the platform. Select the UC configuration for greater unified communications compatibility.

For larger deployments, also take into account your DECT range, device connections, and management needs before ordering.

Choose the Right Setup for Your Business

Bring headset audio, call control, device connectivity and desk accessories all into one UC Workstation all in the WH66. It is suitable for various business environments due to its multi-device connectivity, business management tools, DECT range, Acoustic Shield, Mono and Dual options.
