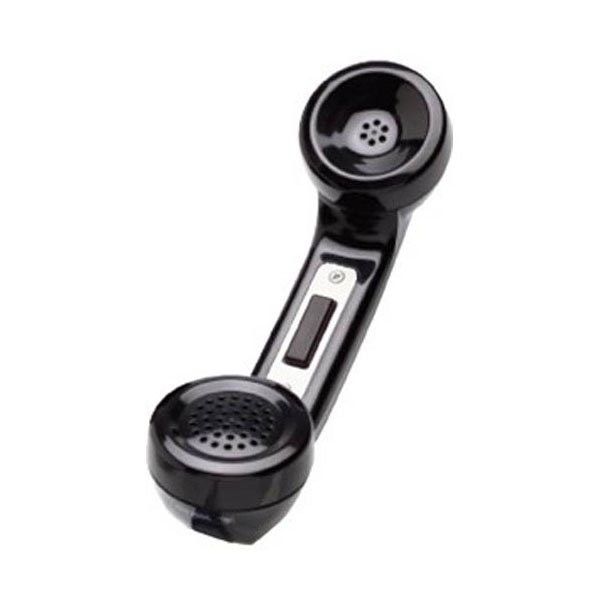

The Walker WS-2402-00 is a specialized professional handset designed exclusively as a direct interface for Siemens-specific communication console systems. This model integrates two critical control functions Push-to-Talk (PTT) and Push-to-Signal (PTS), into a single, dedicated unit, providing operators with definitive, tactile command over transmission and signaling pathways.

It is engineered not as a universal handset, but as a precise component for maintaining and operating legacy and modern Siemens-configured dispatch, security, and process control consoles where original equipment manufacturer (OEM) compatibility is essential for system integrity and performance.

Core Dual-Control Operation and Electrical Integration

The handset’s primary function is its dual-action control mechanism, facilitated through specific internal circuitry compatible with Siemens protocols. The Push-to-Talk (PTT) function engages the microphone circuit to key a connected radio transmitter for direct voice communication over designated channels.

Concurrently, the separate Push-to-Signal (PTS) circuit is designed to trigger a discrete contact closure within the Siemens console, often used to activate a tone, light, or another alert function without interrupting the primary audio path. This dual-wire functionality allows for complex, multi-step operational procedures from a unified interface, ensuring both communication and system commands are executed reliably.

Technical Specifications, Connector Protocol, and Build Quality

This unit is manufactured to the exact mechanical, electrical, and pinout specifications required by compatible Siemens HCM or other series console frames. Its construction utilizes a robust, impact-resistant housing designed for longevity in 24/7 operational environments. The internal wiring harness and connector are proprietary, ensuring correct impedance matching, audio levels, and DC signaling for flawless integration.

This design eliminates guesswork and the need for signal converters, providing a plug-and-play solution that guarantees the handset functions as an integral, reliable part of the larger Siemens ecosystem.

Application in Specialized Siemens Console Ecosystems

The WS-2402-00 is deployed in environments where communication infrastructure is built around Siemens technology. Its primary applications include specialized public safety answering points (PSAPs), mass transit control centers, and industrial SCADA consoles originally configured by Siemens.

It is the critical user-end component for operators within these systems, ensuring that the original console’s designed functionality, from straightforward radio communication to complex, signal-based automation sequences, remains fully operational with a trusted and compatible interface.
